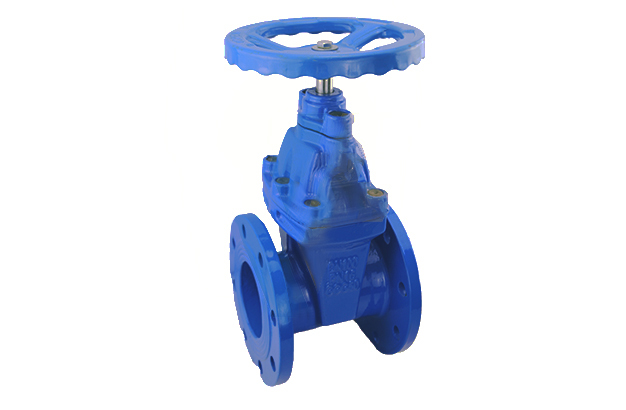

DIN3352 F4 PN10/PN16 Gate Valve
- Model:
- Z45X-16
- Size:
- DN50-DN600
- Pressure:
- PN10, PN16
- Body Materials:
- Ductile Iron GGG40, GGG50
- Applicable Medium:
- Water etc
- Send us Email
Product Introduction
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
Body Material: Ductile Iron GGG40, GGG50
Disc Materials: Ductile Iron Coated with EPDM/NBR
Stem Materials: Carbon Steel, Stainless Steel 416, Stainless Steel 304, Brass, Bronze
Bolt: Carbon Steel, Stainless Steel 304, Stainless Steel 316
Gasket: EPDM, NBR
Cover: Ductile Iron GGG40, GGG50
O-ring: EPDM, NBR, Silicone
Thrust Bearing: Brass
Gland: Ductile Iron GGG40, GGG50
Dust Proof Gasket: EPDM/NBR
Hand Wheel: Ductile Iron GGG40, GGG50
End Connection: Flanged
Product Features
1.The seal is designed with dustproof ring plus three “O”-seal ring, reliable sealing, on-line replaceable.
2.Both gate and aluminum bronze bearing are in inside design good self lubrication ,high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3.Rubber wrapped gate anti-corrosion, good tightness.
4.Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5.The body is designed without gate slot, the smooth passage will not get impurities filling up, more applicable for sewage working condition.
6.The integral seal works reliably. For the high pressure seal, leaving zero leakage under 1.5 times nominal pressure and, for the low pressure one, under 0.02Mpa.
Bolted Bonnet
Replaceable O-ring
Rubber encapsulated wedge, Brass Wedge Nut.
Fusion bonded epoxy coated inside and outside, blue RAL 5017 200 Micron think.
Working pressure from -1 to +16 bar and working temperature from -10 to +80℃
Technical Parameters
| DIN3352F4 PN10/PN16 | |||||||||||
| SIZE | L(mm) | H | a(mm) | d(mm) | c(mm) | x-n | T(mm) | f(mm) | g(mm) | ||
| DN | IN | PN10/PN16 | PN10/PN16 | PN10 | PN16 | ||||||
| 50 | 2" | 150 | 240 | 50 | 165 | 125 | 4-φ19 | 16.5 | 2 | 99 | |
| 65 | 2.5" | 170 | 270 | 65 | 185 | 145 | 4-φ19 | 17 | 2 | 118 | |
| 80 | 3" | 180 | 290 | 80 | 200 | 160 | 4-φ19 | 8-φ19 | 19 | 3 | 132 |
| 100 | 4" | 190 | 330 | 100 | 220 | 180 | 8-φ19 | 20 | 3 | 156 | |
| 125 | 5" | 200 | 380 | 125 | 250 | 210 | 8-φ19 | 20 | 3 | 184 | |
| 150 | 6" | 210 | 420 | 150 | 285 | 240 | 8-φ23 | 20 | 3 | 211 | |
| 200 | 8" | 230 | 510 | 200 | 340 | 295 | 8-φ23 | 12-φ23 | 20 | 3 | 266 |
| 250 | 10" | 250 | 600 | 250 | 405 | 350/355 | 12-φ23 | 12-φ26 | 25 | 3 | 319 |
| 300 | 12" | 270 | 690 | 300 | 460 | 400/410 | 12-φ23 | 12-φ26 | 28 | 4 | 370 |
| 350 | 14" | 290 | 780 | 350 | 520 | 460/470 | 16-φ23 | 16-φ26 | 28 | 4 | 430 |
| 400 | 16" | 310 | 880 | 400 | 580 | 515/525 | 16-φ25 | 16-φ30 | 28 | 4 | 475 |
| 450 | 18" | 330 | 1000 | 450 | 615/640 | 565/585 | 20-φ26 | 20-φ30 | 32 | 4 | 565/585 |
| 500 | 20" | 350 | 1055 | 500 | 670/715 | 620/650 | 20-φ25 | 20-φ34 | 29 | 4 | 580 |
| 600 | 24" | 390 | 1260 | 600 | 780/840 | 725/770 | 20-φ30 | 20-φ36 | 38 | 4 | 680 |
Technical Standard
1.Design and manufacture according to EN1171, DIN3352, EN1074-1 and 2.
2. Face to face according to EN558-1 Series 14, DIN3202 F4
3.Flange drilling according to EN 1092-2, ISO7005-2
4.Pressure test according to EN 12266, ISO5208
5. Shell test pressure: 24 bar, Seat test pressure: 17.6 bar.
